COMPLETE TISSUE PRODUCTION SYSTEMS

Toilet Paper Production Lines

Explore toilet paper production lines by process flow, equipment scope, automation, staffing, power, workshop and packing requirements for different project stages.

LINE CONFIGURATIONS

Compare production lines by the finished product and complete operating conditions

Use the line cards to compare suitable products, automation level, practical output, staffing and factory space before opening the full configuration.

Fully Automatic Renix 1880 / 2200 / 2800 Fully Automatic Series

Fully Automatic Toilet Paper Production Line

A connected toilet paper line combining jumbo roll unwinding, embossing, perforating, rewinding, automatic log cutting, conveying and multi-roll packing.

FINISHED PRODUCT

Core toilet paper rolls, coreless toilet paper rolls, embossed toilet rolls and multi-roll retail packs

Practical Output: 2.5 to 6 tons per 8-hour shift, or approximately 120 to 220 finished rolls per minute under the confirmed product specification
Operators: 3 to 5 operators per shift

View Full Line

Fully Automatic JL-F2200 2200 mm Fully Automatic Paper Roll Production Line

2200 mm Fully Automatic Toilet Paper Roll Production Line

The 2200 mm fully automatic toilet paper roll production line combines rewinding, precision cutting and heat-shrink packaging for core and coreless paper rolls.

FINISHED PRODUCT

Core and coreless toilet paper rolls with an adjustable finished diameter of 60-130 mm.

Practical Output: Cutting speed: 50-120 cuts/min; packaging speed: 30-100 packs/min.
Operators: Recommended staffing: 3-4 operators per shift.

View Full Line

Automatic 2200 Automatic Rewinding, Cutting and Packing Configuration

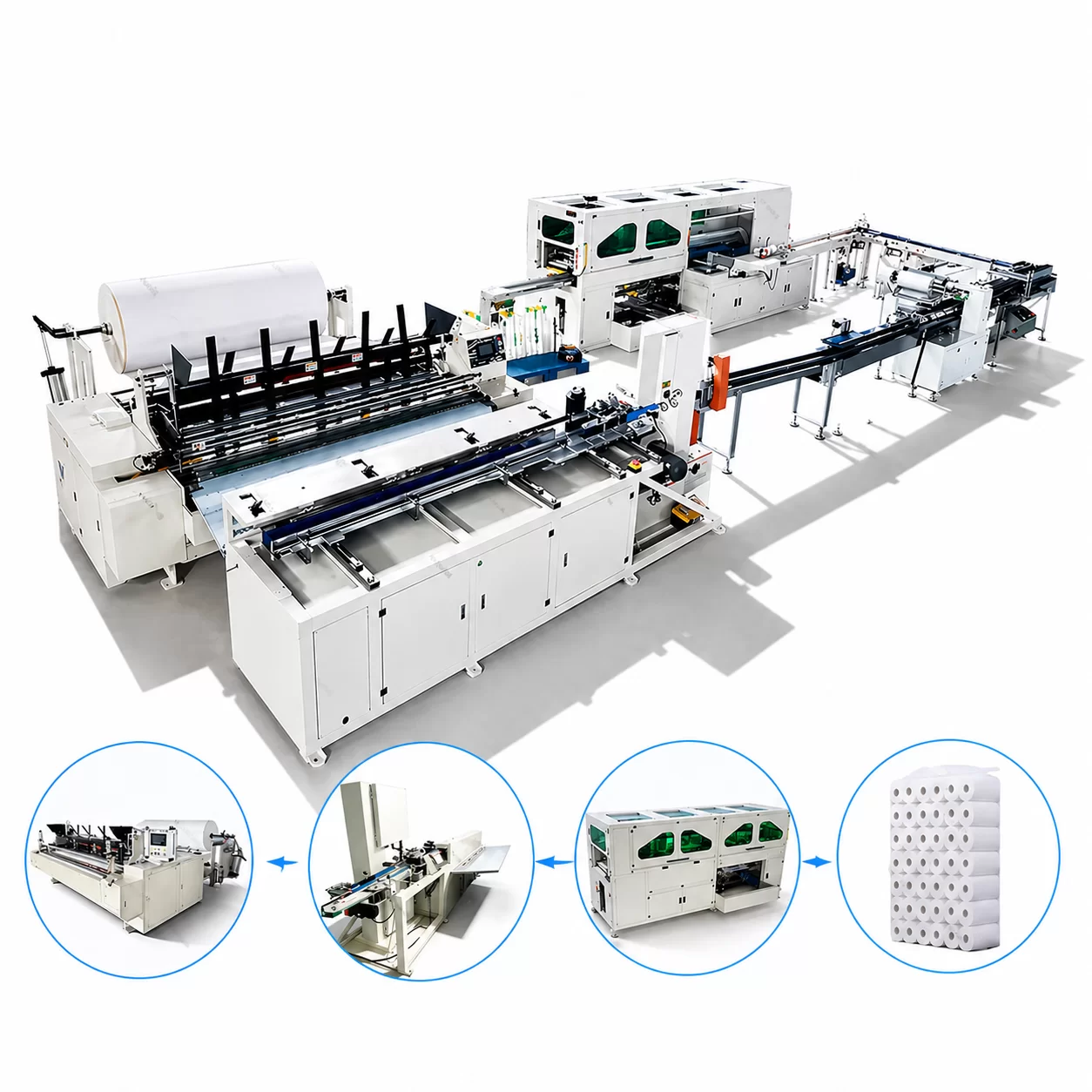

2200 Automatic Toilet Paper Rewinding, Cutting and 2/4/6-Roll Packing Line

2200 automatic toilet paper line with embossing, perforating, high-speed log cutting and 2/4/6-roll packing at 80 to 160 m/min.

FINISHED PRODUCT

Embossed and perforated household toilet paper rolls in 2, 4 or 6-roll packs

Practical Output: Rewinding: 80-160 m/min; cutting: 100-150 cuts/min; packing: 10-50 packs/min
Operators: Approximately 2-4 operators per shift

View Full Line

Automatic 2200 Automatic Rewinding, Cutting and Bundling Configuration

2200 Automatic Toilet Paper Rewinding, Cutting and Bundling Line

2200 automatic toilet paper production line combining rewinding, perforating, log cutting and multi-roll bundling for rolls from 90 to 125 mm in diameter.

FINISHED PRODUCT

Embossed and perforated toilet paper rolls

Practical Output: Rewinding: 80 to 160 m/min; cutting: 100 to 150 cuts/min; bundling: 80 to 120 rolls/min
Operators: Approximately 2 to 4 operators per shift

View Full Line

Semi-Automatic 3000 Semi-Automatic Configuration

3000 Semi-Automatic Toilet Paper Production Line

3000 mm semi-automatic toilet paper production line with embossing, perforating, rewinding, manual band-saw cutting and water-cooled bag sealing.

FINISHED PRODUCT

Core toilet paper rolls, coreless toilet paper rolls, embossed household toilet rolls and manually packed multi-roll toilet paper bags

Practical Output: Rewinding speed: 80 to 180 m/min; finished output depends on roll size, manual cutting rhythm, operator efficiency and packing format
Operators: Approximately 4 to 6 operators per shift

View Full Line

Semi-Automatic 2200 Semi-Automatic Configuration

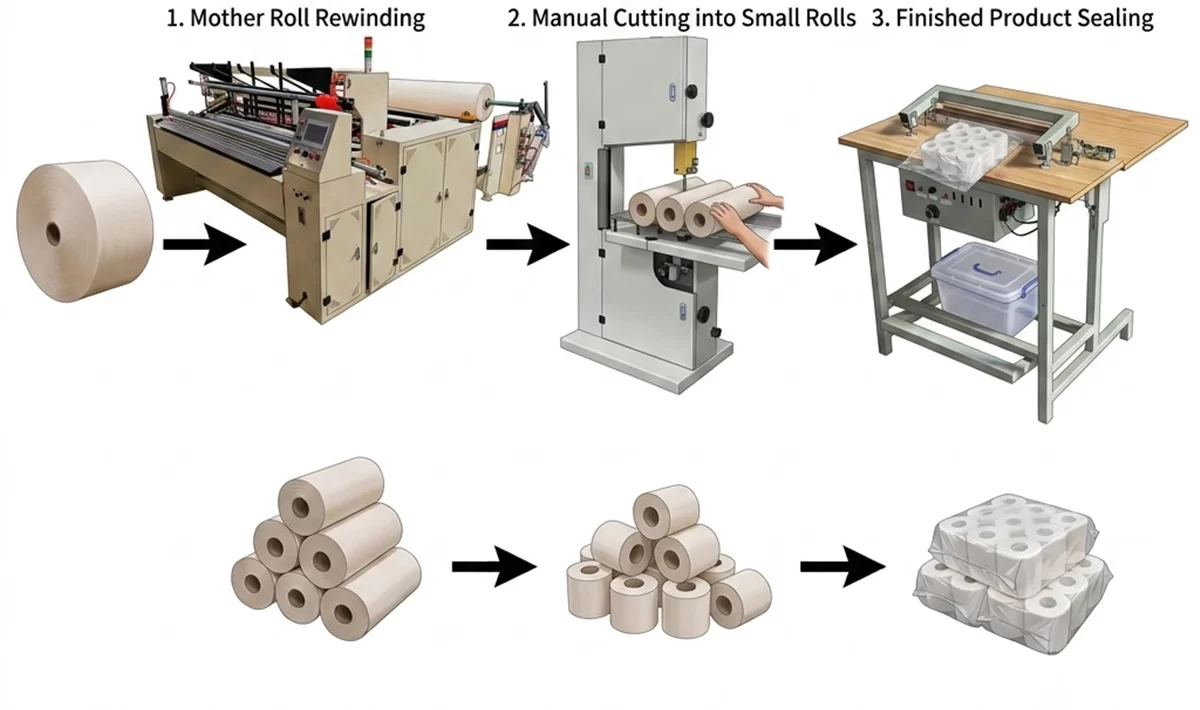

2200 Semi-Automatic Toilet Paper Production Line

2200 semi-automatic toilet paper production line with rewinding, embossing, perforating, manual band-saw cutting and water-cooled bag sealing at 80 to 150 m/min.

FINISHED PRODUCT

Core toilet paper rolls, coreless toilet paper rolls, embossed household toilet rolls and manually packed multi-roll toilet paper bags

Practical Output: Rewinding speed: 80 to 150 m/min; practical finished-roll output depends on roll width, diameter, manual cutting rhythm and packing arrangement
Operators: Approximately 4 to 6 operators per shift

View Full Line

GET PRODUCTION LINE INFORMATION

Compare a practical production route for your target product.

Leave your email address. Finished product, raw material, output, packaging, automation and factory conditions can be confirmed during the follow-up.
